Tính năng : BT-SA-Ⅲ-OHC
◎ With a thread depth control mechanism (constant depth), With an internal coolant supply through the center of the spindle
※ Please use a tap with an oil hole.
● TC-MO-MIST collets in mist specifications are also available. ● Model SA-Ⅲ for right-hand threading is standard.
Model SA-Ⅲ for left-hand threading is also available.
| |
Matching Collets |
| ＳＡ3050-Ⅲ-OHC |
TC3050-MO |
| ＳＡ2035-Ⅲ-OHC |
TC2035-MO |
| ＳＡ1022-Ⅲ-OHC |
TC1022-MO |
| ＳＡ 412-Ⅲ-OHC |
TC 412-MO |

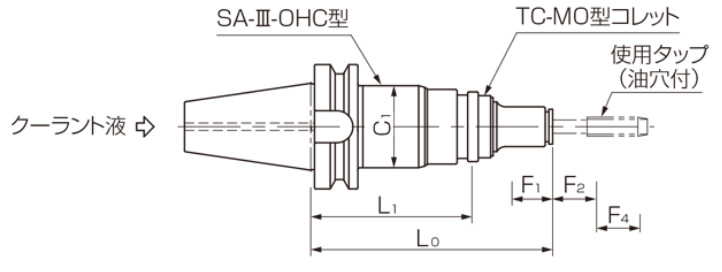

| Model |
L0
[mm] |
L1
[mm] |
C1
[mm] |
F1※
[mm] |
F2※
[mm] |
F4※
[mm] |
Capacity |
Weight
[kg] |
List Price
[JPY] |
DXF |
|
|
165 |
121.5 |
48 |
3 |
( 5) |
( 8) |
M 3～M16 |
2.14 |
105,000 |
Download |
|
|
225 |
160.0 |
66 |
5 |
( 6) |
(10) |
M 8～M27 |
3.44 |
Download |
|
|
180 |
136.5 |
48 |
3 |
( 5) |
( 8) |
M 3～M16 |
4.41 |
Download |
|
|
195 |
130.0 |
66 |
5 |
( 6) |
(18) |
M 8～M27 |
5.00 |
Download |
|
|
275 |
190.0 |
84 |
10 |
( 7) |
(11) |
M18～M38 |
7.00 |
132,000 |
Download |
|
|
345 |
245.0 |
100 |
( 8) |
(14) |
M27～M56 |
11.30 |
182,000 |
Download |
※ Please contact us for the availability of models marked with ★.
※ F1: Compression, F2: Tension, F4: Back Tension
※ F2 and F4 are only for reference.
